LF X5 829±30g pair
Technical Specifications
- Models
- 30/30, 35/35, 45/45, 50/50, 60/60mm
- Rim Width
- 23-25mm internal / 30-34mm external
- Tyre Fit
- Hooked tubeless / clincher, 25-43mm
- System Limit
- 115kg rider / bike / equipment
- Material
- Toray carbon fiber
- Hub
- Ratchet 45T / 8° engagement
- Brake
- Disc Brake
Carbon spokes / TPI ceramic bearings / 45T ratchet

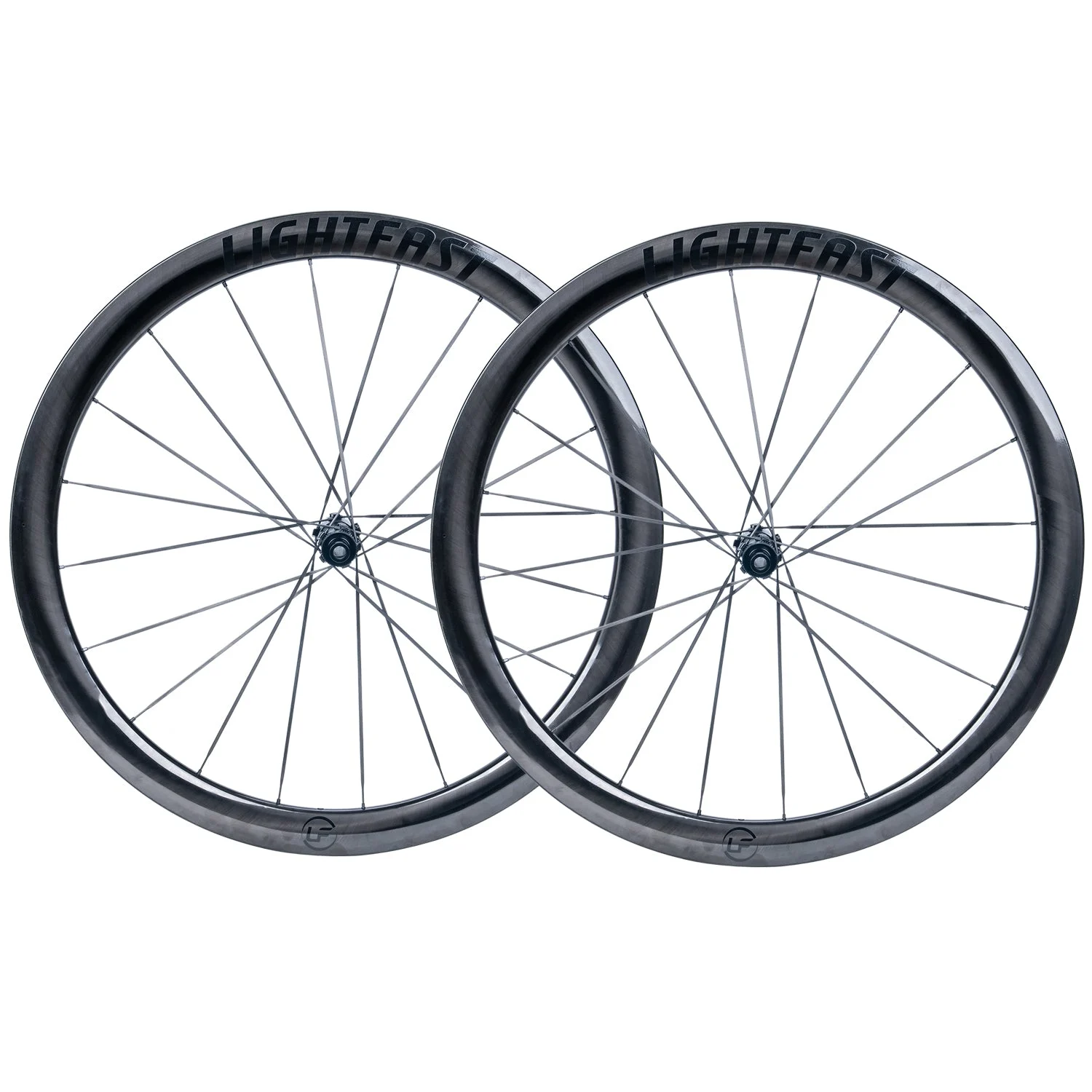

LightFast LF X5 Carbon Spoke Wheelset
Ultra-light disc-brake wheelset with five matched rim-depth options, hooked tubeless-ready rims, 2g carbon spokes, and a 45T ratchet hub.
In stock — available to order
€29 flat-rate EU shipping · Estimated delivery 15–27 working days
Your Configuration
LightFast LF X5 Carbon Spoke Wheelset
- D30/30 model
- Nobel Black
- Glossy finish
- Shimano 11/12S
€1,499 829±30g pair
Open the cart to review the configuration and send it to the workshop request page.
Model reference
LF X5 Specifications
| Model | D30/30 | D35/35 | D45/45 | D50/50 | D60/60 |
|---|---|---|---|---|---|
| Wheelset Weight | 829±30g | 979±30g | 1,019±30g | 1,039±30g | 1,159±30g |
| Front / Rear Depth | 30 / 30mm | 35 / 35mm | 45 / 45mm | 50 / 50mm | 60 / 60mm |
| Internal Width | 23mm | 25mm | 25mm | 25mm | 25mm |
| External Width | 30mm | 34mm | 34mm | 34mm | 34mm |
| Wheel Size | 700C | ||||
| Brake | Disc brake | ||||
| Rim Finish | Paint-free carbon | ||||
| Rim Type | Hooked / tubeless ready / clincher compatible | ||||
| Tyre Range | 700 × 25–43mm (28–33mm recommended by manufacturer) | ||||
| Maximum Tyre Pressure | 110psi | ||||
| Spoke Type | T-head carbon spoke / 2g each | ||||
| Spoke Pattern | Radial 1:1 front and rear | ||||
| Hub | 45T ratchet / 8° engagement | ||||
| Bearings | TPI ceramic bearings | ||||
| Axles | 12 × 100mm front / 12 × 142mm rear | ||||
| Freehub | Shimano / SRAM XDR / Campagnolo | ||||
| System Weight Limit | 115kg including rider, bicycle, and equipment | ||||
