Arow SL 710g frame
Frameset Specifications
- Frame
- 710g raw finish
- Fork
- 355g raw finish
- Seatpost
- 113g without saddle clamp
- Tyre clearance
- 32mm
- Material
- Toray T1100 carbon
- Headset
- FSA 32.8-41.8mm to 34.1-46.9mm
- Bottom Bracket
- Press-fit BB86
- Axles
- 12x100mm front / 12x142mm rear
T1100 carbon / 710g raw frame

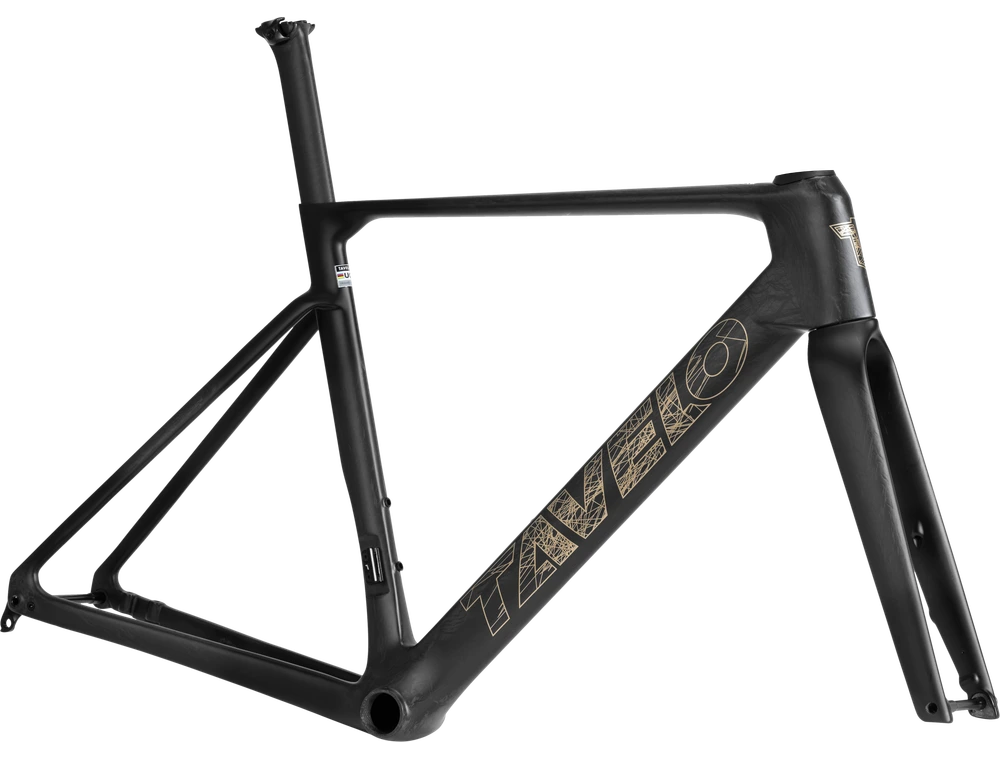

TAVELO Arow SL
Arow SL is the lighter T1100 version of the Arow platform, keeping the integrated aero road design with two selectable finishes.
Your Configuration
TAVELO Arow SL
- M(480) frame size
- Plaid colourway
Price on request 710g frame
Open the cart to review the configuration and send it to the workshop request page.
Fit reference
Geometry
| Measure | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| A Seat Tube | 420 | 450 | 480 | 510 | 540 | 580 |
| B Top Tube | 510 | 520 | 536 | 549 | 575 | 587 |
| C Head Tube | 116 | 123.3 | 134.1 | 148.9 | 172.1 | 200.7 |
| D Chainstay | 410 | 410 | 410 | 410 | 410 | 410 |
| E Head Tube Angle | 70.8° | 71.4° | 72° | 72.8° | 73° | 73° |
| F Seat Tube Angle | 75° | 74.5° | 74° | 73.5° | 73° | 73° |
| G BB Drop | 71 | 71 | 71 | 70 | 70 | 70 |
| H Front Centre | 572.2 | 577 | 583.5 | 589.3 | 602 | 620.5 |
| I Fork Length | 370 | 370 | 370 | 370 | 370 | 370 |
| J Wheelbase | 971.6 | 976.4 | 983 | 989.1 | 1001.9 | 1020.5 |
| K Fork Rake | 45 | 45 | 45 | 45 | 45 | 45 |
| Reach | 365 | 372 | 380 | 388 | 396 | 407 |
| Stack | 517 | 526 | 538 | 554 | 576 | 604 |
| Standover | 702 | 727 | 752 | 779 | 805 | 841 |
| Fork Trail | 72.4 | 68.4 | 64.6 | 59.6 | 58.4 | 58.4 |
All dimensions are in mm unless otherwise noted. Geometry is provided as a fit reference; confirm sizing with Eireworks before ordering.
