Arow Race 820g frame
Frameset Specifications
- Frame
- 820g raw finish
- Fork
- 355g raw finish
- Seatpost
- 113g without saddle clamp
- Tyre clearance
- 32mm
- Material
- Toray T800 carbon
- Headset
- FSA 32.8-41.8mm to 34.1-46.9mm
- Bottom Bracket
- Press-fit BB86
- Axles
- 12x100mm front / 12x142mm rear
T800 carbon / 820g raw frame
TAVELO Arow Race

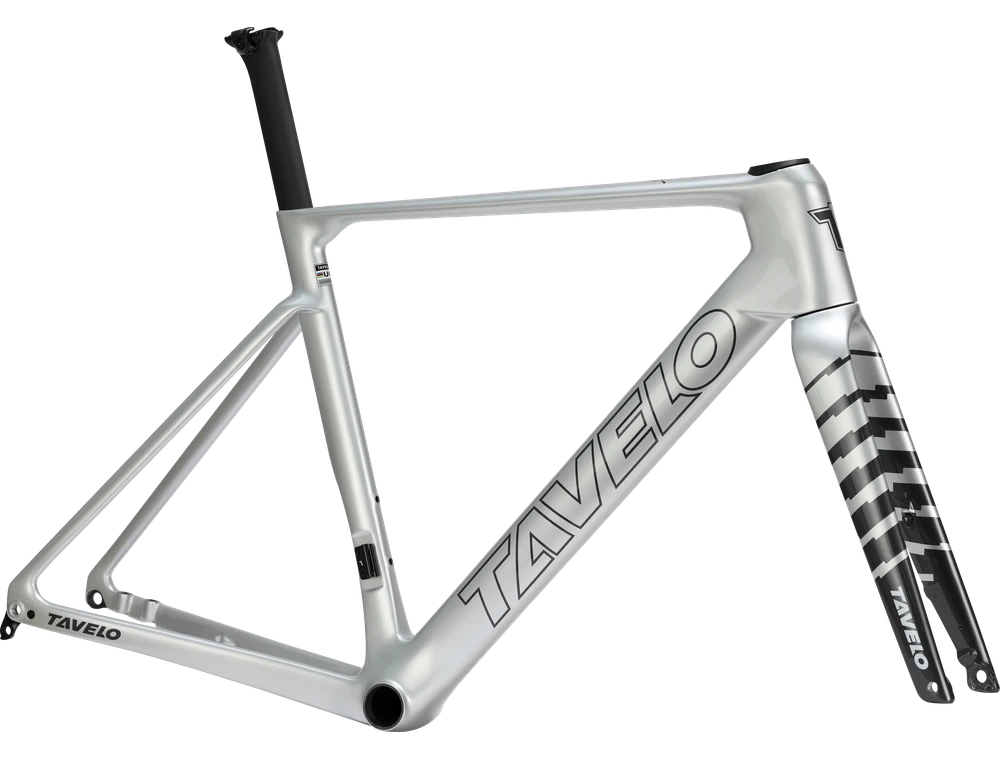

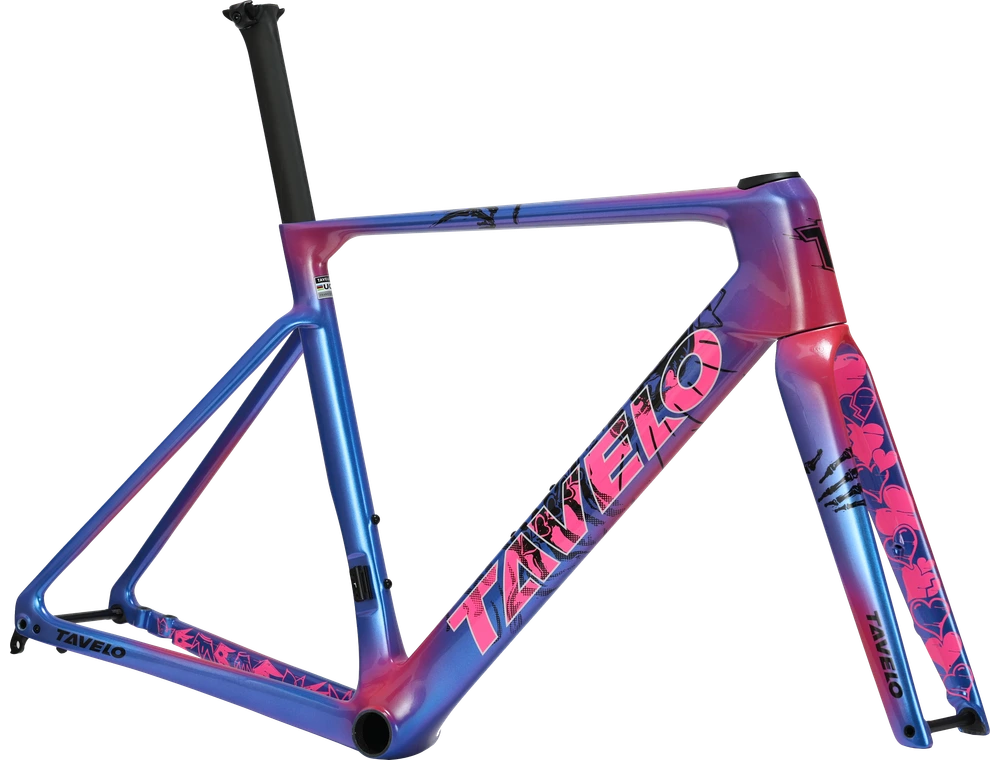

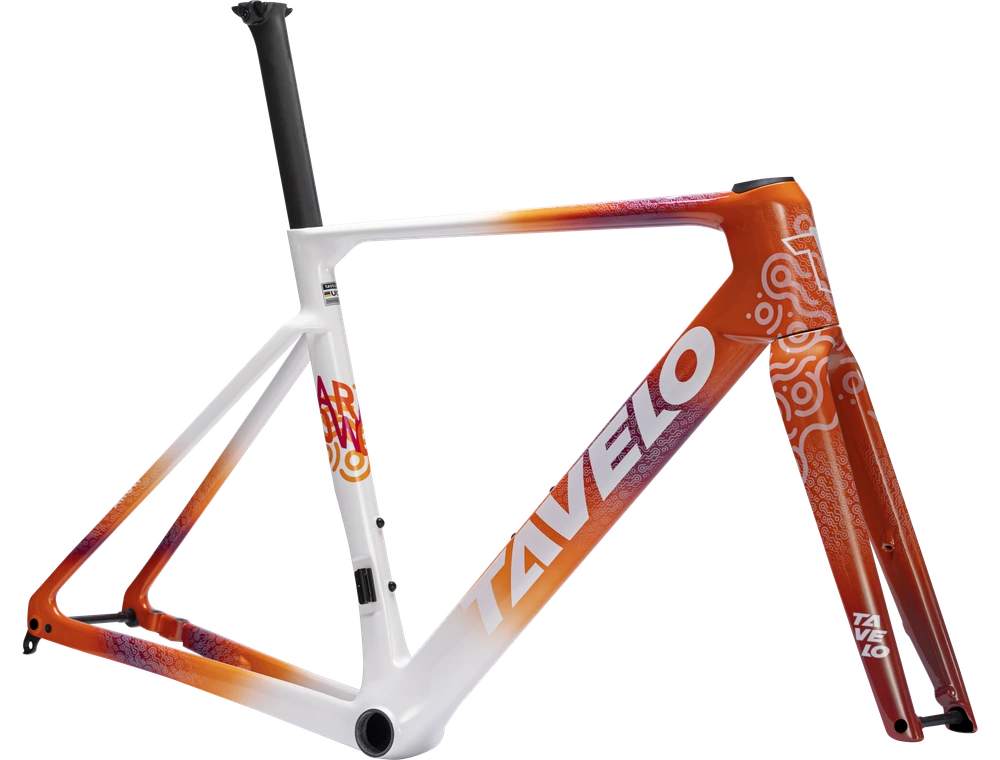

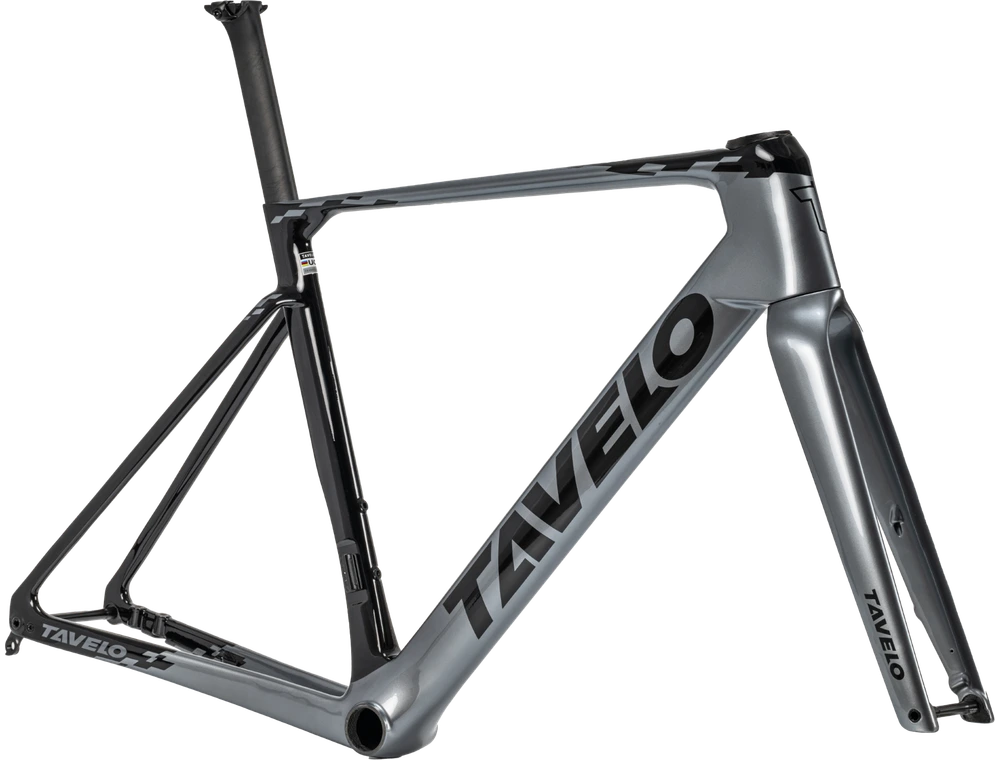

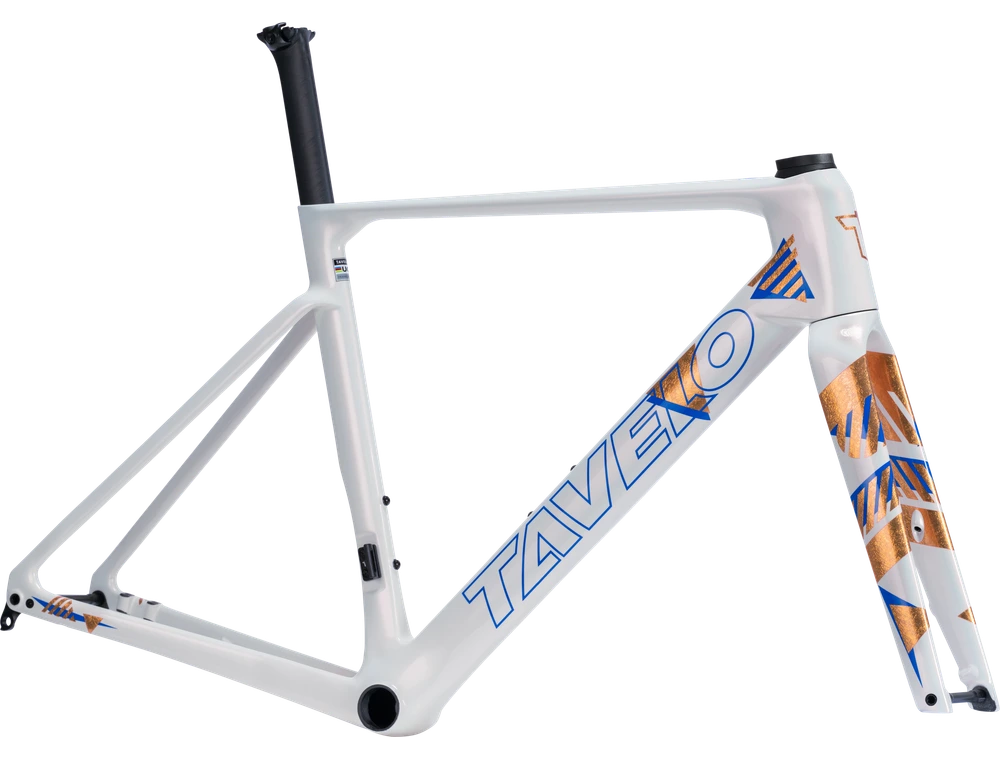

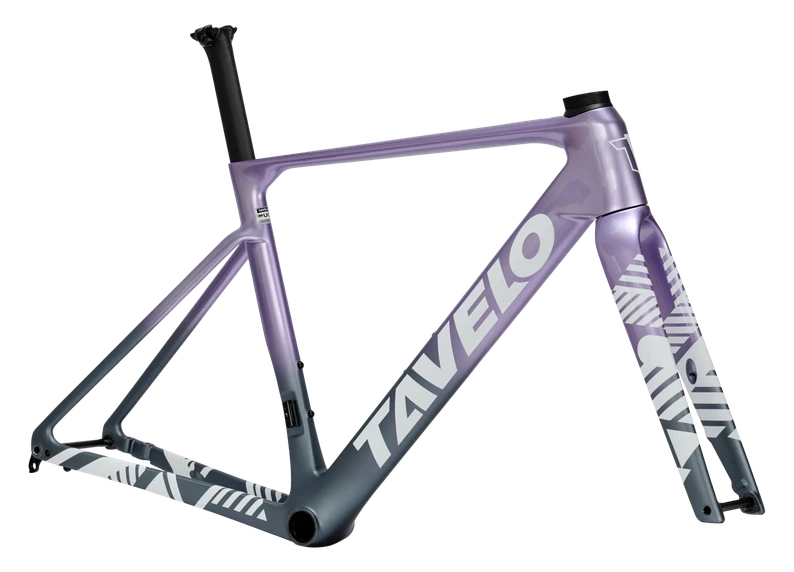

Arow Race is Tavelo’s T800 aero road platform with clean routing, flat-mount disc brakes, BB86, and seven selectable finishes.
Your Configuration
TAVELO Arow Race
- M(480) frame size

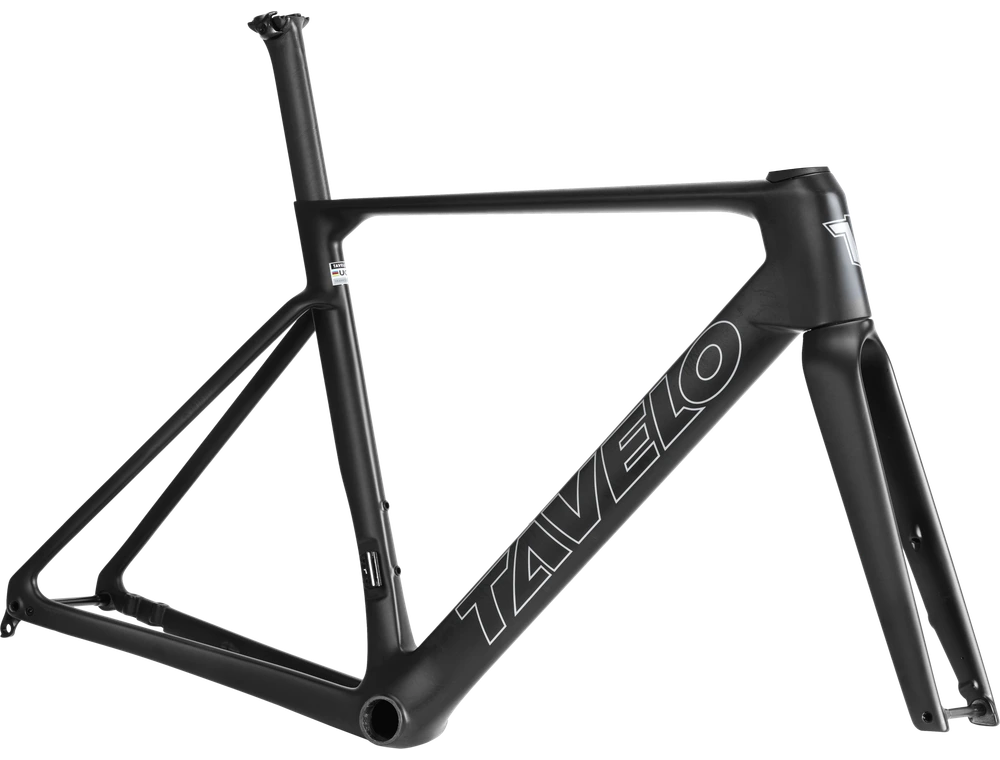

- Ludicrous colourway
Price on request 820g frame
Open the cart to review the configuration and send it to the workshop request page.
Fit reference
Geometry
| Measure | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| A Seat Tube | 420 | 450 | 480 | 510 | 540 | 580 |
| B Top Tube | 510 | 520 | 536 | 549 | 575 | 587 |
| C Head Tube | 116 | 123.3 | 134.1 | 148.9 | 172.1 | 200.7 |
| D Chainstay | 410 | 410 | 410 | 410 | 410 | 410 |
| E Head Tube Angle | 70.8° | 71.4° | 72° | 72.8° | 73° | 73° |
| F Seat Tube Angle | 75° | 74.5° | 74° | 73.5° | 73° | 73° |
| G BB Drop | 71 | 71 | 71 | 70 | 70 | 70 |
| H Front Centre | 572.2 | 577 | 583.5 | 589.3 | 602 | 620.5 |
| I Fork Length | 370 | 370 | 370 | 370 | 370 | 370 |
| J Wheelbase | 971.6 | 976.4 | 983 | 989.1 | 1001.9 | 1020.5 |
| K Fork Rake | 45 | 45 | 45 | 45 | 45 | 45 |
| Reach | 365 | 372 | 380 | 388 | 396 | 407 |
| Stack | 517 | 526 | 538 | 554 | 576 | 604 |
| Standover | 702 | 727 | 752 | 779 | 805 | 841 |
| Fork Trail | 72.4 | 68.4 | 64.6 | 59.6 | 58.4 | 58.4 |
All dimensions are in mm unless otherwise noted. Geometry is provided as a fit reference; confirm sizing with Eireworks before ordering.
